Range of Products >> Connector  >> DIP SWITCH  >>  DA4







Operation Force / Temp.

800g Max  / -20°C~+80°C

Contact Resistance
50 mΩ ,max. at DC 100mA
Insulator Resistance
100 mΩ ,min. at DC 500V
Current Rating
100mA
Withstanding voltage
AC500V/1Min
Operating temperature
-55°C~+105°C
Contact
Phosphor Bronze , Gold Plated
Housing PBT & 30% Glass Fiber(UL94V-0)
Top Seal
Polyester Film

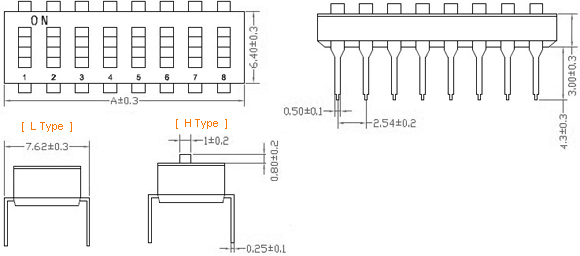

Position A Position A Position A Position A
2P 6.18 5P 13.80 8P 21.42 12P 31.58
3P 8.72 6P 16.34 9P 23.96
4P 11.26 7P 19.88 10P 26.50


  How to Order:

DA4 02   H B 2
Series No.   No.of Poles

Item Type



Color

  Seal Cover   Customer Request
        H:    H Type   B. Blue   1.  With it
        L:     L Type   R: Red   2.  W/O it
          K: Black
