Range of Products >> Connector  >> D-sub Series >>  DP







Contact Resistance
30 mΩ ,max. at DC 100mA
Insulator Resistance
1000 mΩ ,min. at DC 500V
Current Rating
5AMP
Withstanding voltage
AC1000V/1Min
Operating temperature
-55°C~+105°C
Contact
Brass or Phosphor Bronze
Housing
PBT & 30% Glass Fiber(UL94V-0)

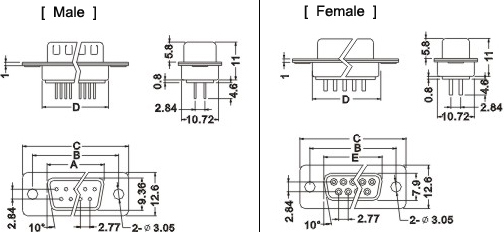

Position A B C D E
9P 17.78 24.99 31.04 19.36 16.33
15P 26.15 33.32 39.24 27.64 24.66
25P 39.94 47.04 53.04 41.08 38.38
37P 56.56 63.50 69.62 57.38 54.84





  How To Order: :

DP

9

  F

B




Series No.   No. of Poles

Item Type



Color

  Customer Request
    9 / 15 / 25

F: Female



B.   Blue



    37 / 50

M: Male



K.   Black




W.  White
