Range of Products >> Connector  >> wire to board Connector  >>  GSC6








Contact Resistance
100 mΩ ,max. at DC 100mA
Insulator Resistance
1000 mΩ ,min. at DC 500V
Current Rating
3 AMP
Withstanding voltage
AC1000V/1Min
Operating temperature
-25°C~+85°C
Contact
Phosphor Bronze
Housing
Nylon (UL94V-0)

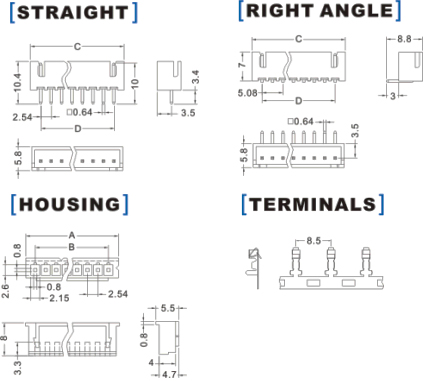

         How to Order:

GSC6 02   S   T

Series No.

  No of Poles   H:  Housing

Only for Male Header S(R) Type

    02 - 20 Poles   S:  Straight  Type

T: Tin Plated


        R:  Right Angle

G: Gold Plated



If Terminals, Please order  GSC6-Terminal-"T"  ( "T"--Tin Plated , "G"-- Gold Flash plated )
