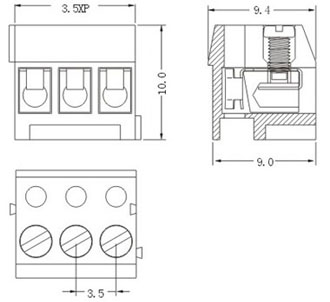

Range of Products >>Terminal Block >> Wire-protector TB  >>  GS005-3.50







Standard
UL
VDE
Rated voltage
300V
250V
Rated current
8A
8A
Wire range
28-16AWG
1.0mm2
Withstanding voltage
AC2000V/1Min
Ambient temperature
-30°C~+120°C
Strip length
5-6mm
Torque 0.2Nm(4.4Lb-In.)
Pitch
3.50mm(.197")
Poles
2P , 3P ---Any poles
Housing
PBT,UL94V-0
Screws

M2.0,steel,Cr3+ Zn plated

Contact
Brass,Tin plated
Wire guard
Stainless steel







  How To Order: :

GS005

3.50

02 P

2



 A


Series No.   Pitch(mm)   No.of Poles   Color   Screw Type- A: Slot "-"
    3.50

1. Grey     2.Blue

B: Crossing "+"

    7.00

3. Black   4.Green




5.Orange   6.Red




7.Natural   8.White
