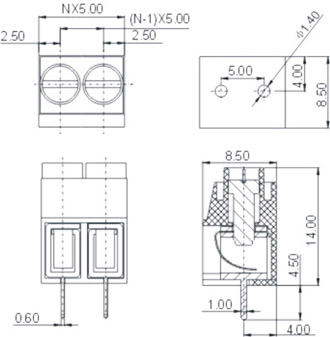

Range of Products >>Terminal Block >> Wire-protector TB  >>  GS018S







Standard
UL
VDE
Rated voltage
300V
250V
Rated current
15A
22A
Wire range
22-12AWG
0.5-2.5mm2
Withstanding voltage
AC2000V/1Min
Ambient temperature
-40°C~+105°C
Strip length
6-7mm
Torque 0.5Nm(4.4Lb-In.)
Pitch
5.00 mm(.197")
Poles
2P , 3P ---Any poles
Housing
PA66,UL94V-0
Screws

M2.5,steel,Cr3+ Zn plated

Contact
Brass,Tin plated
Wire guard
Stainless steel







   How to Order:

GS018S 02 P 2   A
Series No.   No.of Poles   Color   Screw Type A. Slot "-"
          1. Grey     2.Blue B. Crossing "+"
          3. Black   4.Green
          5.Orange   6.Red
          7.Natural   8.White
