Range of Products >>Terminal Block >> Fuse Terminal block >>  GS024S








Standard
UL
VDE
Rated voltage
250V
300V
Rated current
12A
20A
Withstanding voltage
AC2000V/1Min
Ambient temperature
-40°C~+105°C
Pitch
5.08mm / 7.62mm / 10.16mm
Poles
2P,3P ---25P
Housing
PC,UL94V-0
Solder Pins
Brass, Tin Plated

























   How To Order:  :

GS024S

5.08

02 P

A

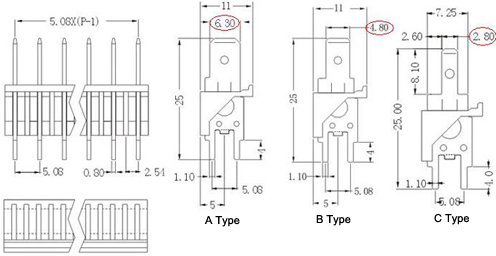

Series No.   Pitch(mm)   No.of Poles

Pin Type

    5.08

A Type:  6.30mm

    7.62

B Type: 4.80mm

    10.16

C Type: 2.80mm
