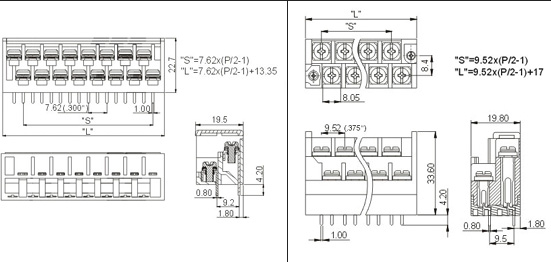

Range of Products >>Terminal Block >> Barrier Terminal block >>  GSA24 / A44







Part Number GSA24 GSA44
Pitch 7.62mm 9.52mm
Voltage 450V 450V
Current 20A 24A
Wire Range 22-12AWG / 2.5mm² 22-14AWG / 2.50mm²
Torque 0.8N.m (7.0Lb.in) 0.8N.m (7.0Lb.in)
Housing PA66 UL94V-0
Solder Pins Brass,1.0t / 0.8t,Tin-Plated

Screws

Steel, M3.5, Ni-Plated Steel, M3.5, Ni-Plated









   How to order:



GSA24 02 P 3
Series No.   No.of Poles   Color   Customer Request
GSA24         1. Grey     2.Blue
GSA44         3. Black   4.Green
          5.Orange   6.Red
          7.Natural   8.White
