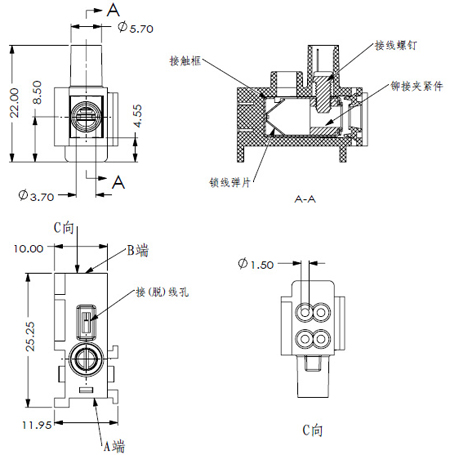

Range of Products >>Terminal Block >> Fuse Terminal block >>  GSF325







Standard
UL
CE
Rated voltage
250V
300V
Rated current
13A
20A
Wire range
20-14AWG
0.5-0.75mm2
Withstanding voltage
AC3000V/1Min
Torque

0.8Nm(10.6Lb-In.)

Ambient temperature
-40°C~+105°C
Housing
PA66,UL94V-0
Screws

M3.5,steel,Cr3+ Zn plated

Terminals
Brass, Ni-Plated
