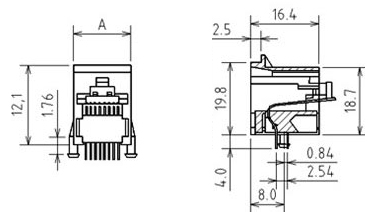

Range of Products >>Telecommunication  >> PCB Jack  >> TJ8 Series







Contact Resistance
2 mΩ max.
Insulator Resistance
500 mΩ ,min. at DC 500V
Current Rating
24V DC 3 AMP Max
Withstanding voltage
AC500V/1Min
Contact
Phosphor Bronze , Gold Plated Or Tin Plated
Housing PBT & 30% Glass Fiber(UL94V-0)
Position Details
4P4C , 6P2C , 6P4C , 6P6C , 8P8C



    How To Order:   :

TJ8

4P4C

G

B

Series No.   Position   G:  Gold Plated

Customer Request

    4P4C  , 6P2C   T:   Tin Plated



    6P4C  , 6P6C
    8P8C
