Range of Products >> Test Probe  >> P75 Series



P75 Series

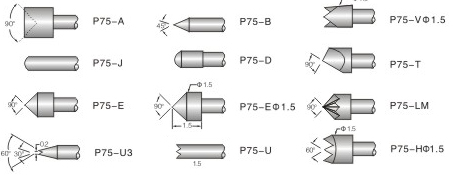

Available Head

Matching Sleeve


Recommended Min-Center 1.90mm
Full Travel 2.54mm
Contact Spring force 150g
Rating Current 3A
Contact Resistance 50m

Probe Pole Beryllium copper with Gold Plated
Inside Sleeve Phosphor bronze with Gold Plated
Spring Materials Piano Wire with Gold Plated
Outside Sleeve Phosphor bronze with Gold Plated
